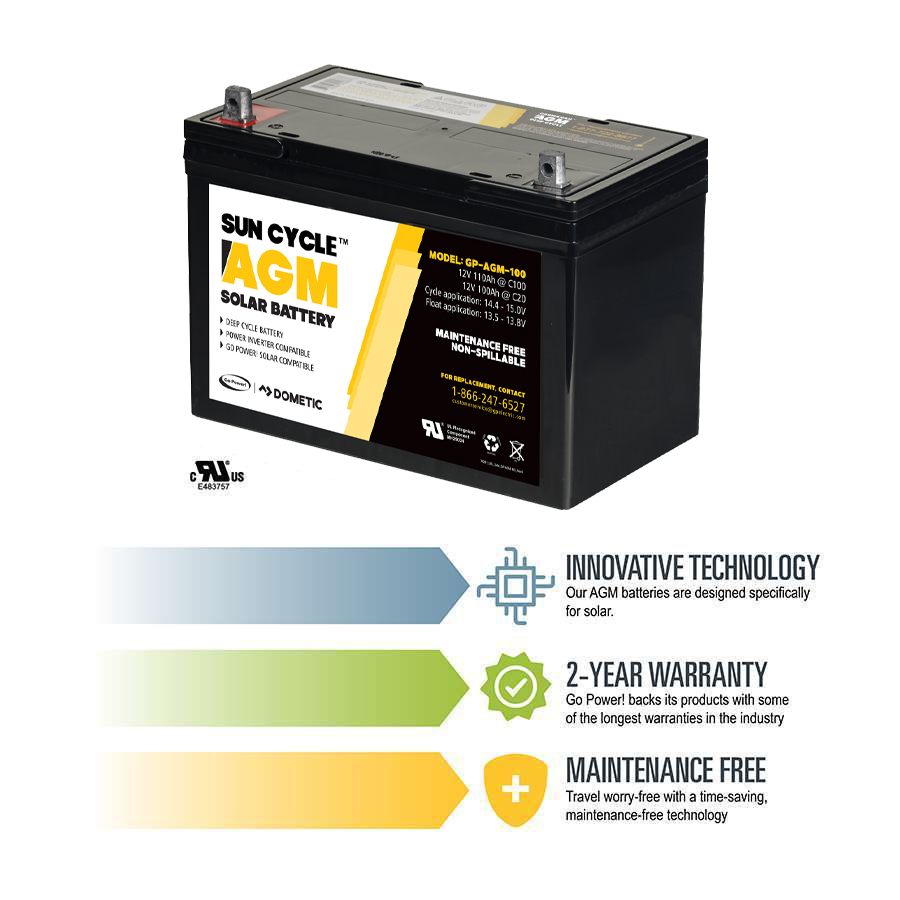

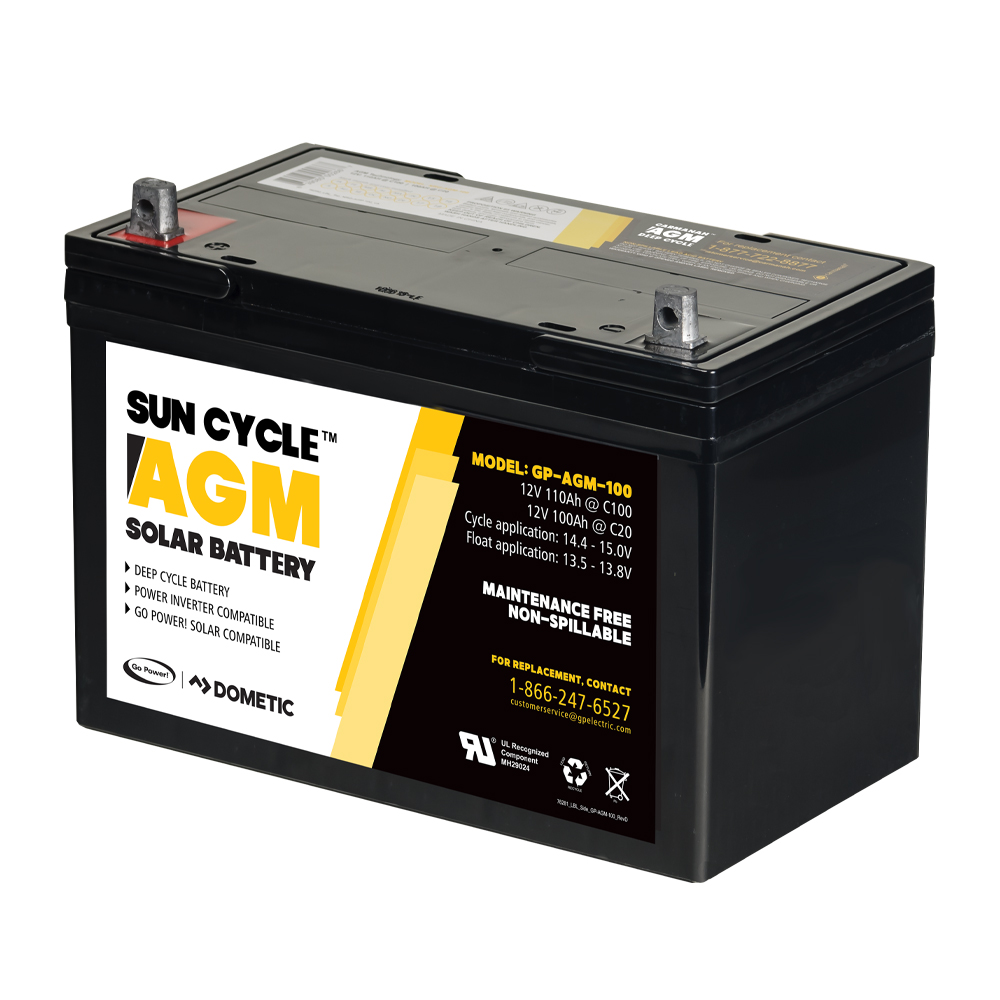

12 Volt Sun Cycle AGM Solar Battery

Technology

AGM, VRLA deep cycle battery

Nominal Voltage

12 V

Nominal Capacity

110 Ah

Rated Capacity

110.0 Ah/1.10A (100hr,1.80V/cell)

100.0 Ah/5.00A (20hr,1.80V/cell)

95.2 Ah/9.52A (10hr,1.80V/cell)

83.0 Ah/16.6A (5hr,1.75V/cell)

Nominal Operating Temperature

77 ±5 °F (25 ±3 °C)

Operating Temperature Range

Discharge, Storage: -4~140°F (-20~60°C)

Charge: -4~122°F (-20~50°C)

Capacity Correction for Temperature Variations

104°F (40°C) 103%

77°F (25°C) 100%

32°F (0°C) 86%

Maximum Discharge Current

1200 A (5s)

Internal Resistance

Approx. 4.9mΩ

Terminals

T14

Torque: 11 ~ 14.7 Nm (97.28 – 130 in*lbs)

Cycle Use

Initial Charging Current less than 30.0 A

Voltage: 14.4 V~15.0 V at 77°F (25°C)

Temp. Coefficient -30mV/°C

Standby Use

No limit on Initial Charging Current

Voltage: 13.5 V~13.8 V at 77°F (25°C)

Temp. Coefficient -20mV/°C

Certifications

UL; CE; IEC60896-21 & 22

Self Discharge

Batteries can be stored for up to 6 months before a freshening charge is required.

*Batteries stored at temperatures greater than 77°F (25°C) will require a recharge sooner.

Cycle Life

77oF (25oC)

100% Depth of Discharge ~ 250 cycles

50% Depth of Discharge ~ 1100 cycles

30% Depth of Discharge ~ 2250 cycles
