Solar Elite Charging System (400 watts)
SOLAR ELITE-400
The Solar Elite System is a complete power system ideal for full-time RVers. Similar to our SOLAR EXTREME, this system includes all solar, inverter, installation hardware and smart battery components required to have the charging capability from both solar and shore power.
It features two powerful solar modules that produce 400 watts solar charging power and will charge your battery with up to 18+ amps of charging current. The Solar Elite also includes our 2000 watt Inverter Charger, a supreme all-in-one unit that combines 2000 watts of pure sine wave AC power with a built-in battery charger and transfer switch.
This system can be expanded to accommodate up to 600 watts of solar. Extend your weekend stay and enjoy dry camping freedom without the need for a generator.
*Best paired with 400+Ah of AGM Battery Power, or 200+Ah Lithium Battery Power.Applications
Buying Options
Overview
Product Overview
MODEL: SOLAR ELITE

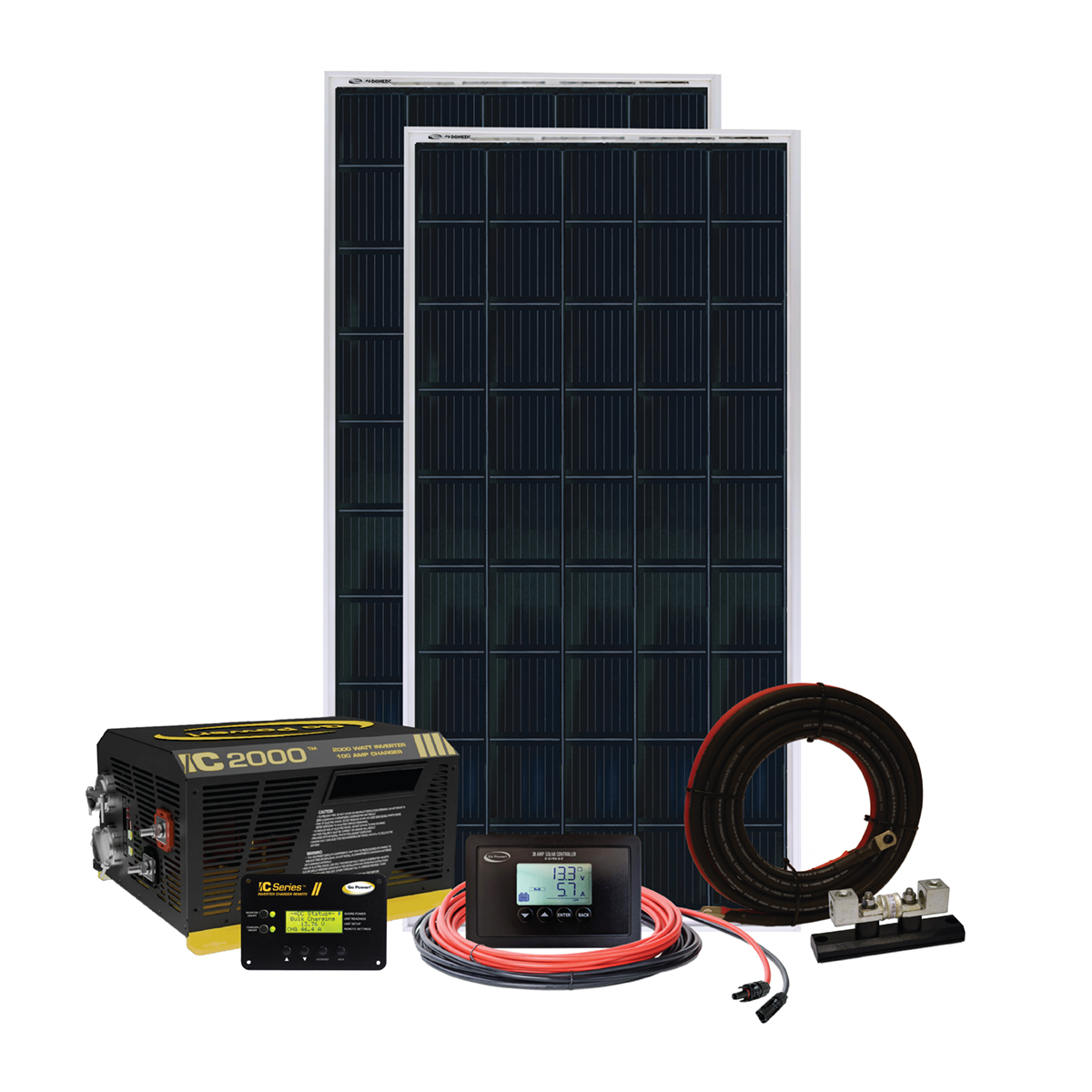

Included in the Solar Elite System:
-
200-watt solar charging kit + 200-watt expansion kit (OVERLANDER + OVERLANDER-E)
-
2000 watt pure sine wave Inverter Charger for AC power (GP-IC-2000), with built-in 100 amp battery charger and 50 amp dual leg transfer switch
-
Inverter charger remote (GP-ICR-50)
- 30-amp single-bank, Bluetooth® PWM Solar Controller (GP-SB-PWM-30BT)*
-
DC inverter install kit (GP-DC-KIT4)
- 1 x 25' of solar output cable (#10) red & 1 x 25’ of solar output cable (#10) black
- Mounting hardware (1 x GP-MH-4-KB)
*If you have the GP-PWM-30-UL controller WITHOUT Bluetooth, please click here for the User Manual and Spec Sheet.
Specifications
Product Specifications
| SOLAR EXTREME | SOLAR ELITE | WEEKENDER | |
|---|---|---|---|
| Output power | 600 W / 28.8 A | 400 W / 19.2 A | 200 W / 9.6 A |
| Inverter power | 3000 W | 2000 W | 1500 W |
| Solar controller | 30 A, PWM | 30 A, PWM | 30 A, PWM |
| Inverter remote | On/off, Digital monitoring | On/off, LED monitoring | On/off, LED monitoring |
| Smart Converter Charger | 125 A | 100 A | – |
| Transfer switch | 100 A (2x50A Legs) | 100 A (2x50A Legs) | 30 A |
| Inverter Fuse and Cable Kit | 400 A fuse, 4/0 cable | 300 A fuse, 2/0 cable | 200 A fuse, #2 cable |
| Solar cell type | Monocrystalline |
|
Output power
|
200 W
|
|
Rated current
|
9.6 A |
|
Rated DC voltage
|
20.8 V
|
| Open-circuit voltage | 24.3 V |
| Module efficiency | 21.5% |
| Connectivity | Solar Branch Connectors |
| Frame type | Clear anodized aluminum frame |
| Certifications | CE |
| Dimensions | 59.1 x 26.3 x 1.57 in / 1500 x 668 x 40 mm |
|
Weight
|
26.4 lbs / 12 kg
|
|
Warranty
|
25 years power output (module)
|
|
Output Power (up to 40ºC) |
2000W |
|
|
Surge Power (100 milliseconds) |
4000W |
|
|
Surge Power (5 seconds) |
3400W |
|
|
Peak Output Current |
35A |
|
|
Continuous Output Current |
17A |
|
|
Output Voltage |
115 VAC |
|
|
Output Frequency |
60 Hz ±0.1Hz |
|
|
Output Waveform |
Pure Sine Wave |
|
|
Efficiency (Peak) |
90% |
|
|
DC Input Voltage Range |
9 – 17 VDC |
|
|
Maximum Continuous DC Input Current |
283 ADC |
|
|
No Load Power Consumption |
Normal Mode:25W, Sleep Mode: 5W |
|
|
AC Connections |
Split Phase In/Dual Out, Dual In/ Dual Out |
|
Input Voltage Nominal |
120 VAC |
|
|
Input Voltage Range |
80 – 140VAC |
|
|
Input Current |
15A |
|
|
Input Power Factor Correction |
0.97 typical |
|
|
Optimal Efficiency |
> 85% |
|
|
Charge Control |
3 stage with manual equalize |
|
|
Output Voltage |
5 – 16VDC |
|
|
Output Current |
100 ADC |
|
|
Change Temperature Compensation |
Remote Battery Sensor |
