40 Amp MPPT Solar Controller
GP-MPPT-40
Go Power!'s 40 Amp MPPT Solar Controller uses Maximum Power Point Tracking (MPPT) charging and is capable of charging 3 battery types.
Buying Options
Quick Links
Product Overview
Model: GP-MPPT-40
Regulates and prevents the solar panel from overcharging batteries. Maximum Power Point Tracking (MPPT) charging and 3 battery charging profiles.
- The most efficient MPPT controller for RVs
- Maximizes all power from your solar modules
- Stackable: add an additional controller for 80A
- Easy-to-read backlit digital remote display
- Included in our larger, multi-panel solar kits
- 5-year warranty
Remote sold separately.
Product Specifications
|
System Voltage |
12/24V (auto-recognition) |
|
Temperature Compensation |
-24mV / K (12V systems), – 48mV/K (24V Systems) |
|
Controller Operating Battery Voltage Range (min. – max.) [V] |
9V – 15.5V (12V system), 18 – 31V (24V system) |
|
Max Charge Current |
40A |
|
Float Charge (Default= SEALED) |
13.8/27.6V (25°C) |
|
Main Charge (Default= SEALED) |
14.1/28.2V (25°C), 0.5h Daily |
|
Boost Charge (Default- SEALED) |
14.4/28.8V (25°C), 2h, Activation: Battery Voltage <12.3/24.6V |
|
Equalization Charge (Flooded) |
14.9/29.8 (25°C),2h, Activation: Battery Voltage <12.1/24.2V (at least every 30 days) |
|
Over-Voltage Protection |
15.5/31.0V |
|
Max Panel Input Voltage |
150 Voc |
|
Max PV Power Input |
600W@12V / 1200W @24V |
|
Min PV Voltage Input |
16V (12V Systems) / 33V (24V Systems) |
|
Idle Self-Consumption |
0.7W (60mA typical at 12.0V, 30mA typical at 24.0V) |
|
Grounding |
Negative Grounding |
|
Ambient Temperature |
-40° to +60° C |
|
Battery Type |
Lead Acid (SEALED, AGM, Flooded) |
|
Max Wire Cross Section |
AWG 2 |
|
Dimensions |
169 x 173 x 57 mm |
|
Weight |
1.1 kg |
|
Type of Protection |
IP20 |
|
Warranty |
5 Years |
[supsystic-gallery id=’11’]
Product Documents
Model: GP-MPPT-40
Regulates and prevents the solar panel from overcharging batteries. Maximum Power Point Tracking (MPPT) charging and 3 battery charging profiles.
- The most efficient MPPT controller for RVs
- Maximizes all power from your solar modules
- Stackable: add an additional controller for 80A
- Easy-to-read backlit digital remote display
- Included in our larger, multi-panel solar kits
- 5-year warranty
Remote sold separately.
Product Specifications
|
System Voltage |
12/24V (auto-recognition) |
|
Temperature Compensation |
-24mV / K (12V systems), – 48mV/K (24V Systems) |
|
Controller Operating Battery Voltage Range (min. – max.) [V] |
9V – 15.5V (12V system), 18 – 31V (24V system) |
|
Max Charge Current |
40A |
|
Float Charge (Default= SEALED) |
13.8/27.6V (25°C) |
|
Main Charge (Default= SEALED) |
14.1/28.2V (25°C), 0.5h Daily |
|
Boost Charge (Default- SEALED) |
14.4/28.8V (25°C), 2h, Activation: Battery Voltage <12.3/24.6V |
|
Equalization Charge (Flooded) |
14.9/29.8 (25°C),2h, Activation: Battery Voltage <12.1/24.2V (at least every 30 days) |
|
Over-Voltage Protection |
15.5/31.0V |
|
Max Panel Input Voltage |
150 Voc |
|
Max PV Power Input |
600W@12V / 1200W @24V |
|
Min PV Voltage Input |
16V (12V Systems) / 33V (24V Systems) |
|
Idle Self-Consumption |
0.7W (60mA typical at 12.0V, 30mA typical at 24.0V) |
|
Grounding |
Negative Grounding |
|
Ambient Temperature |
-40° to +60° C |
|
Battery Type |
Lead Acid (SEALED, AGM, Flooded) |
|
Max Wire Cross Section |
AWG 2 |
|
Dimensions |
169 x 173 x 57 mm |
|
Weight |
1.1 kg |
|
Type of Protection |
IP20 |
|
Warranty |
5 Years |

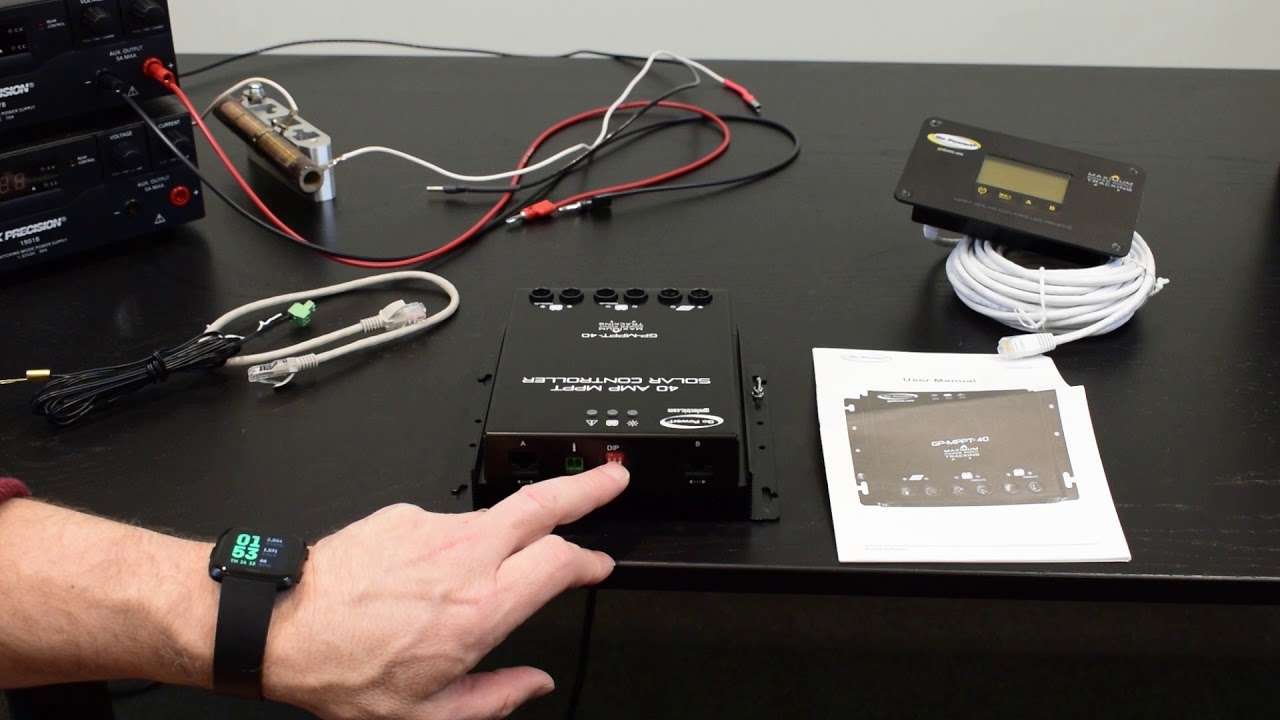

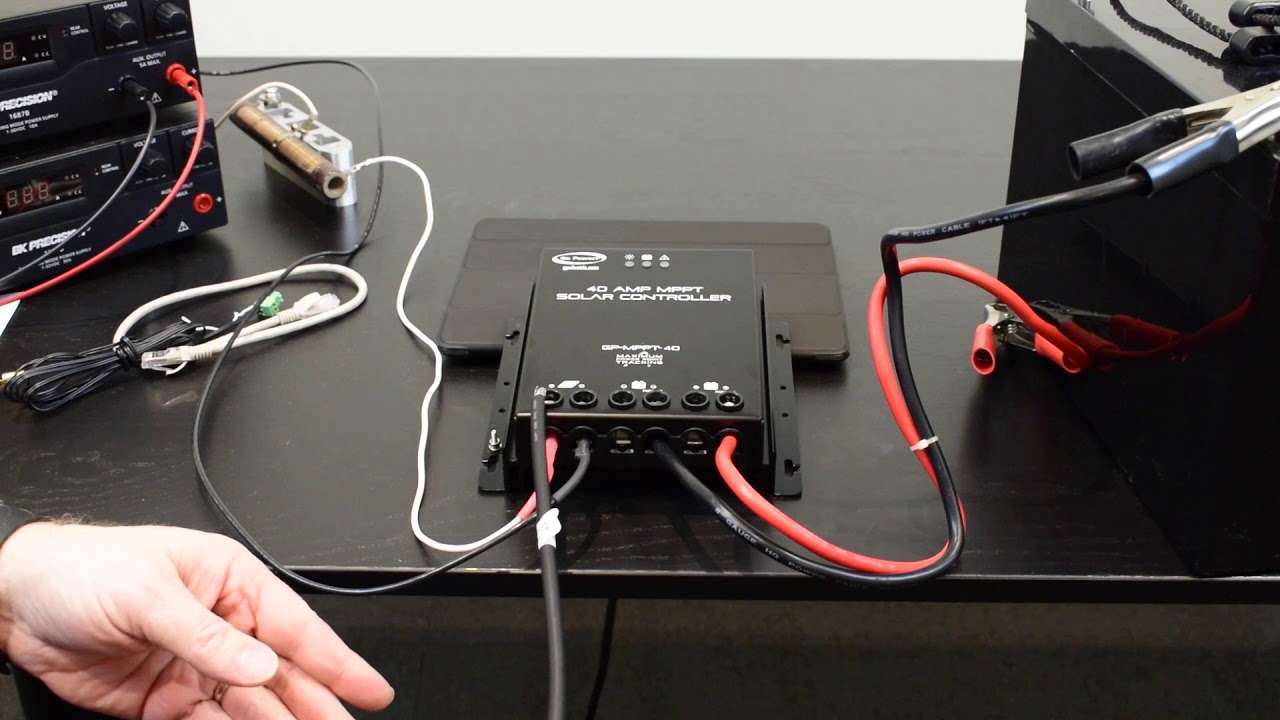

Product Support Videos
