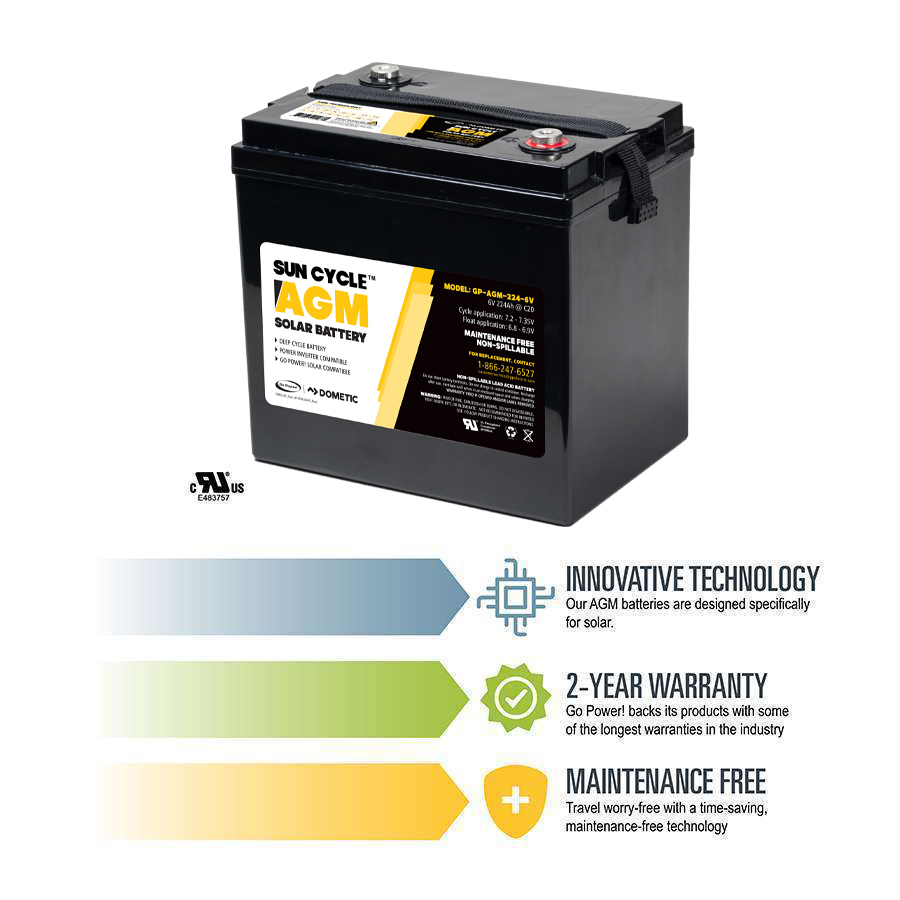

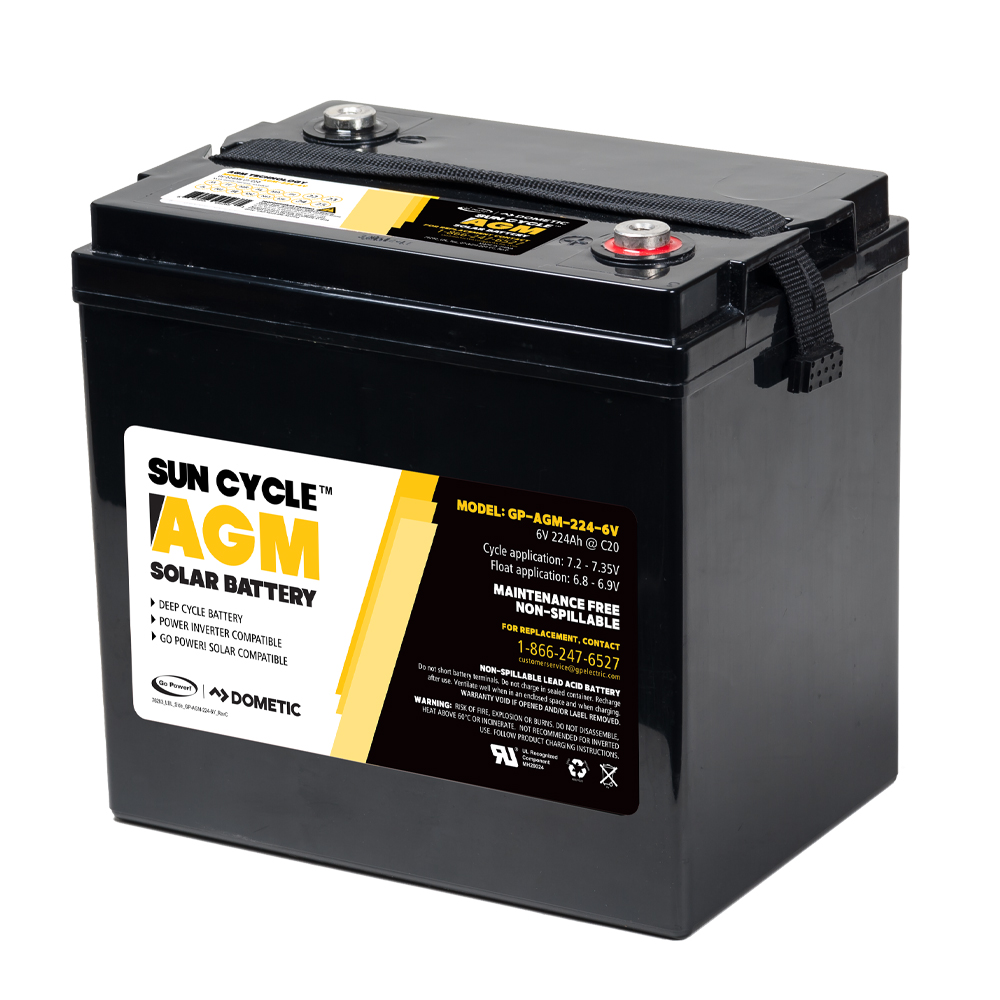

6 Volt Sun Cycle AGM Solar Battery
The 6 Volt Sun Cycle AGM battery is designed for solar and inverter use. Specifically designed for solar, the AGM deep-cycle batteries offer maintenance free, sealed construction and integrated carrying handles. Ideal for upgrading lead-acid battery banks.
Replace a single 12-volt lead-acid battery with two 6-volts (wired in series) to expand your off-grid power.
Applications
Buying Options
Quick Links
6 Volt Sun Cycle AGM Solar Battery
GP-AGM-224-6V
The 6 Volt Sun Cycle AGM battery is designed for solar and inverter use. Specifically designed for solar, the AGM deep-cycle batteries offer maintenance free, sealed construction and integrated carrying handles. Ideal for upgrading lead-acid battery banks.
Replace a single 12-volt lead-acid battery with two 6-volts (wired in series) to expand your off-grid power.
Applications
Buying Options
Quick Links
Product Overview
MODEL: GP-AGM-224-6V
Upgrade your battery bank with the Sun Cycle AGM deep cycle battery designed specifically for solar!
Features
- 6V, 224AH @ C20
- UL Listed
- Float application: 6.8 - 6.9V
- Cycle application: 7.2 - 7.4V
- Maintenance-free, sealed construction
- Spill-proof/leak-proof (VRLA)
- Integrated carrying handles
- 67.3 lbs / 30.5 kg
- 2-year warranty
Product Specifications
|
SPECIFICATIONS |
|
|
Technology |
AGM, VRLA deep cycle battery |
|
Nominal Voltage |
6 V |
|
Nominal Capacity |
224 Ah |
|
Rated Capacity (25oC) |
224 Ah/11.2A (20hr, 5.25V/cell) 194 Ah/19.4A (10hr, 5.25V/cell) 179 Ah/35.9A (5hr, 5.1V/cell) |
|
Nominal Operating Temperature |
77 ±5 °F (25 ±3 °C) |
|
Operating Temperature Range |
Discharge, Storage: -4~140°F (-20~60°C) Charge: -4~122°F (-20~50°C) |
|
Capacity Correction for Temperature Variations |
104°F (40°C) 103% 77°F (25°C) 100% 32°F (0°C) 85% |
|
Maximum Discharge Current |
2000 A (5s) |
|
Internal Resistance |
Approx. 1.4mΩ |
|
Terminals |
T11 Brass Insert |
|
Cycle Use |
Initial Charging Current less than 30.0 A Voltage: 7.2 V~7.4 V at 77°F (25°C) |
|
Standby Use |
No limit on Initial Charging Current Voltage: 6.8 V~6.9 V at 77°F (25°C) |
|
Certifications |
UL; CE; IEC60896-21 & 22 |
|
Self Discharge |
Batteries can be stored for up to 6 months before a freshening charge is required. *Batteries stored at temperatures greater than 77°F (25°C) will require a recharge sooner. |
|
Cycle Life 77oF (25oC) |
100% Depth of Discharge ~ 250 cycles 50% Depth of Discharge ~ 1100 cycles 30% Depth of Discharge ~ 2250 cycles |
|
Materials |
|
|
Case and Cover |
ABS |
|
Separator |
Absorbent Glass Mat (AGM) |
|
Active |
PbO2 + Pb |
|
Electrolyte |
Diluted Sulfuric Acid |
|
Venting Valve |
Rubber, opening pressure 8-20kPa |
|

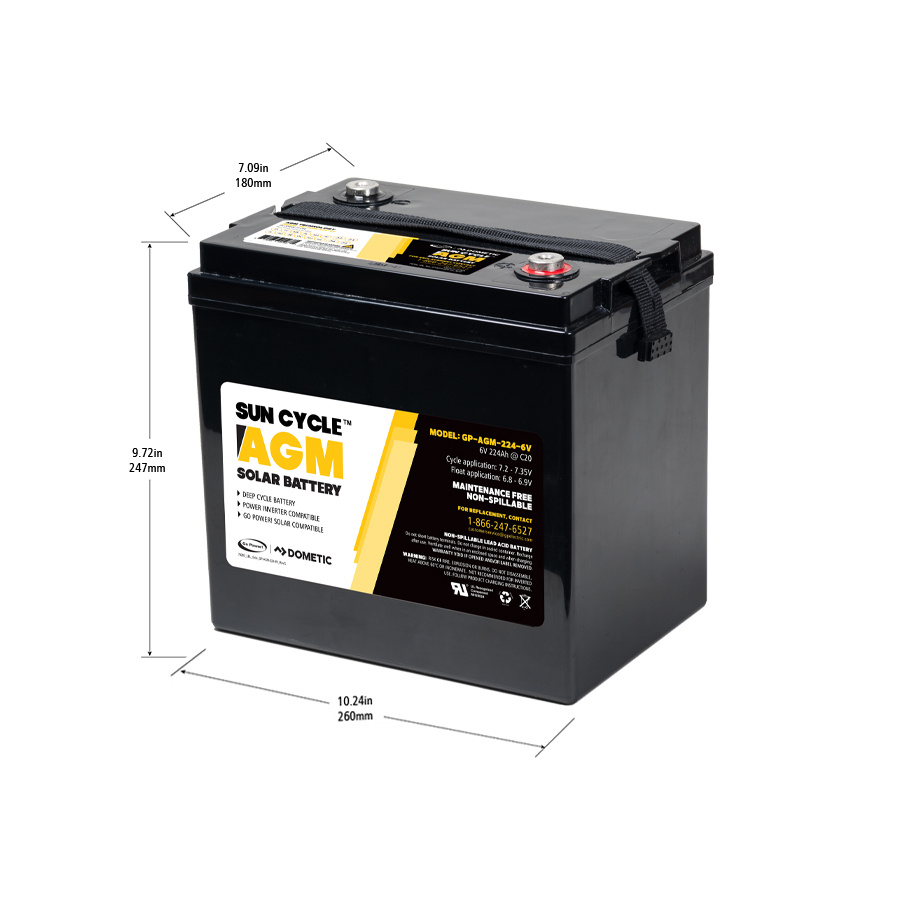

Mechanical |
|
|
Length |
10.24 in / 260 mm |
|
Width |
7.09 in / 180 mm |
|
Height |
9.72 in / 247 mm |
|
Total Height (including terminals) |
9.96 in / 253 mm |
|
BCI Group # |
27 |
|
Weight |
67.25 lbs / 30.5 kg |
|
Carrying |
Nylon Strap |
Product Documents
Product Support Resources
MODEL: GP-AGM-224-6V
Upgrade your battery bank with the Sun Cycle AGM deep cycle battery designed specifically for solar!
Features
- 6V, 224AH @ C20
- UL Listed
- Float application: 6.8 – 6.9V
- Cycle application: 7.2 – 7.4V
- Maintenance-free, sealed construction
- Spill-proof/leak-proof (VRLA)
- Integrated carrying handles
- 67.3 lbs / 30.5 kg
- 2-year warranty
Battery Specifications
|
SPECIFICATIONS |
|
|
Technology |
AGM, VRLA deep cycle battery |
|
Nominal Voltage |
6 V |
|
Nominal Capacity |
224 Ah |
|
Rated Capacity (25oC) |
224 Ah/11.2A (20hr, 5.25V/cell) 194 Ah/19.4A (10hr, 5.25V/cell) 179 Ah/35.9A (5hr, 5.1V/cell) |
|
Nominal Operating Temperature |
77 ±5 °F (25 ±3 °C) |
|
Operating Temperature Range |
Discharge, Storage: -4~140°F (-20~60°C) Charge: -4~122°F (-20~50°C) |
|
Capacity Correction for Temperature Variations |
104°F (40°C) 103% 77°F (25°C) 100% 32°F (0°C) 85% |
|
Maximum Discharge Current |
2000 A (5s) |
|
Internal Resistance |
Approx. 1.4mΩ |
|
Terminals |
T11 Brass Insert |
|
Cycle Use |
Initial Charging Current less than 30.0 A Voltage: 7.2 V~7.4 V at 77°F (25°C) |
|
Standby Use |
No limit on Initial Charging Current Voltage: 6.8 V~6.9 V at 77°F (25°C) |
|
Certifications |
UL; CE; IEC60896-21 & 22 |
|
Self Discharge |
Batteries can be stored for up to 6 months before a freshening charge is required. *Batteries stored at temperatures greater than 77°F (25°C) will require a recharge sooner. |
|
Cycle Life 77oF (25oC) |
100% Depth of Discharge ~ 250 cycles 50% Depth of Discharge ~ 1100 cycles 30% Depth of Discharge ~ 2250 cycles |
Materials
|
Materials |
|
|
Case and Cover |
ABS |
|
Separator |
Absorbent Glass Mat (AGM) |
|
Active |
PbO2 + Pb |
|
Electrolyte |
Diluted Sulfuric Acid |
|
Venting Valve |
Rubber, opening pressure 8-20kPa |
Mechanical
|
Mechanical |
|
|
Length |
10.24 in / 260 mm |
|
Width |
7.09 in / 180 mm |
|
Height |
9.72 in / 247 mm |
|
Total Height (including terminals) |
9.96 in / 253 mm |
|
BCI Group # |
27 |
|
Weight |
67.25 lbs / 30.5 kg |
|
Carrying |
Nylon Strap |
