Dometic 30A MPPT Solar Controller
Intelligence and performance in a sleek form factor. Dometic MPPT controllers optimize the power generated by your solar panels and keep your batteries charged and healthy. Monitor your controller remotely with the Go Power! Connect / Dometic Power app. View essential battery information and customize charge parameters using a connected handled device.
Applications
23612
23613
Buying Options
Quick Links
Dometic 30A MPPT Solar Controller
SC-DB-MPPT-30-12
Intelligence and performance in a sleek form factor. Dometic MPPT controllers optimize the power generated by your solar panels and keep your batteries charged and healthy. Monitor your controller remotely with the Go Power! Connect / Dometic Power app. View essential battery information and customize charge parameters using a connected handled device.
Applications
Quick Links
Overview
Product Overview

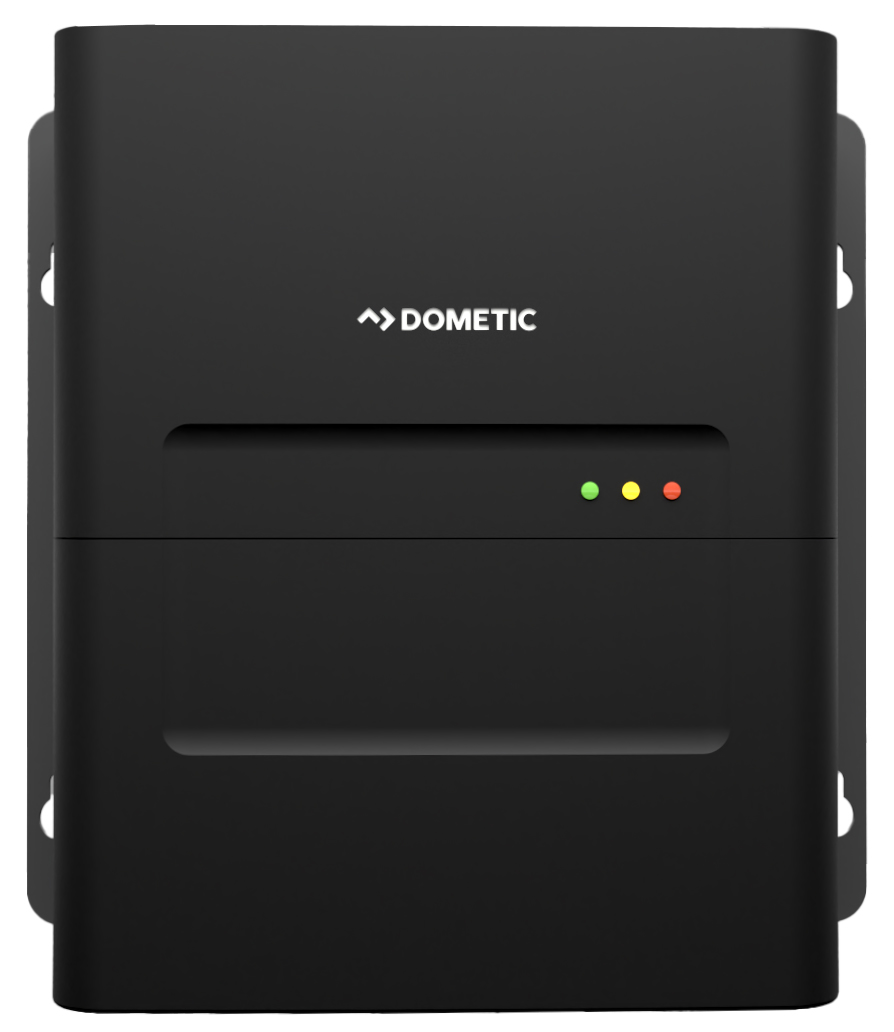

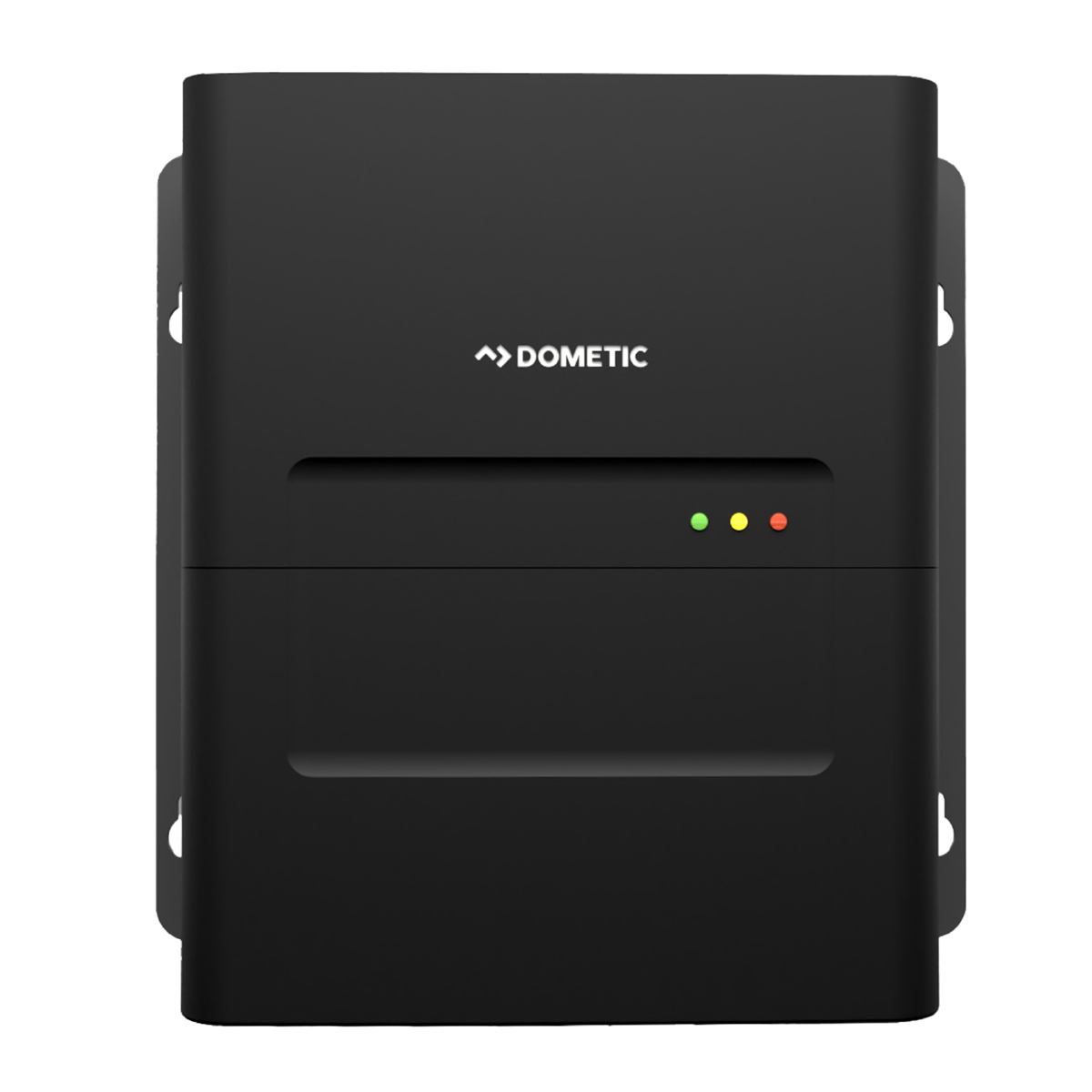

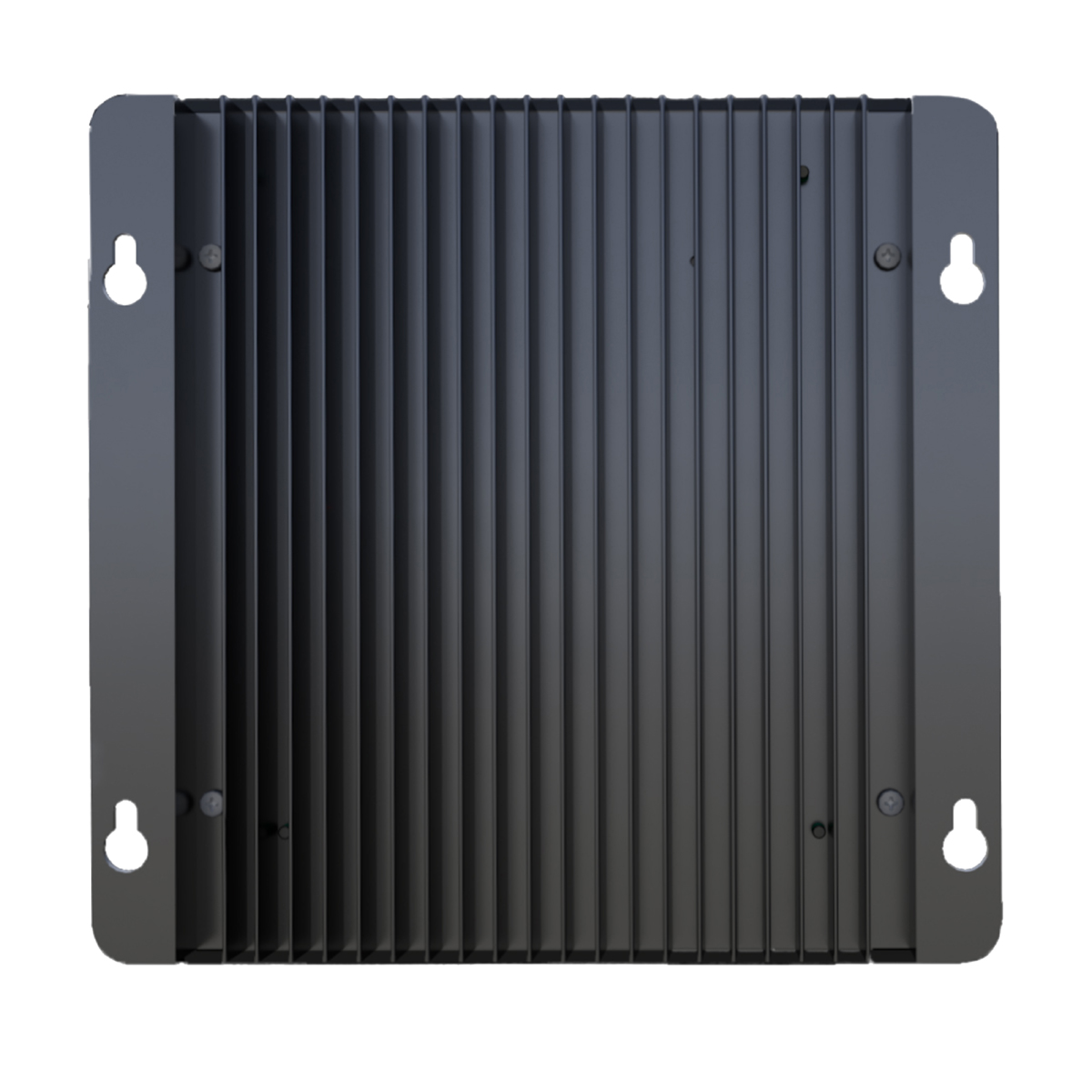

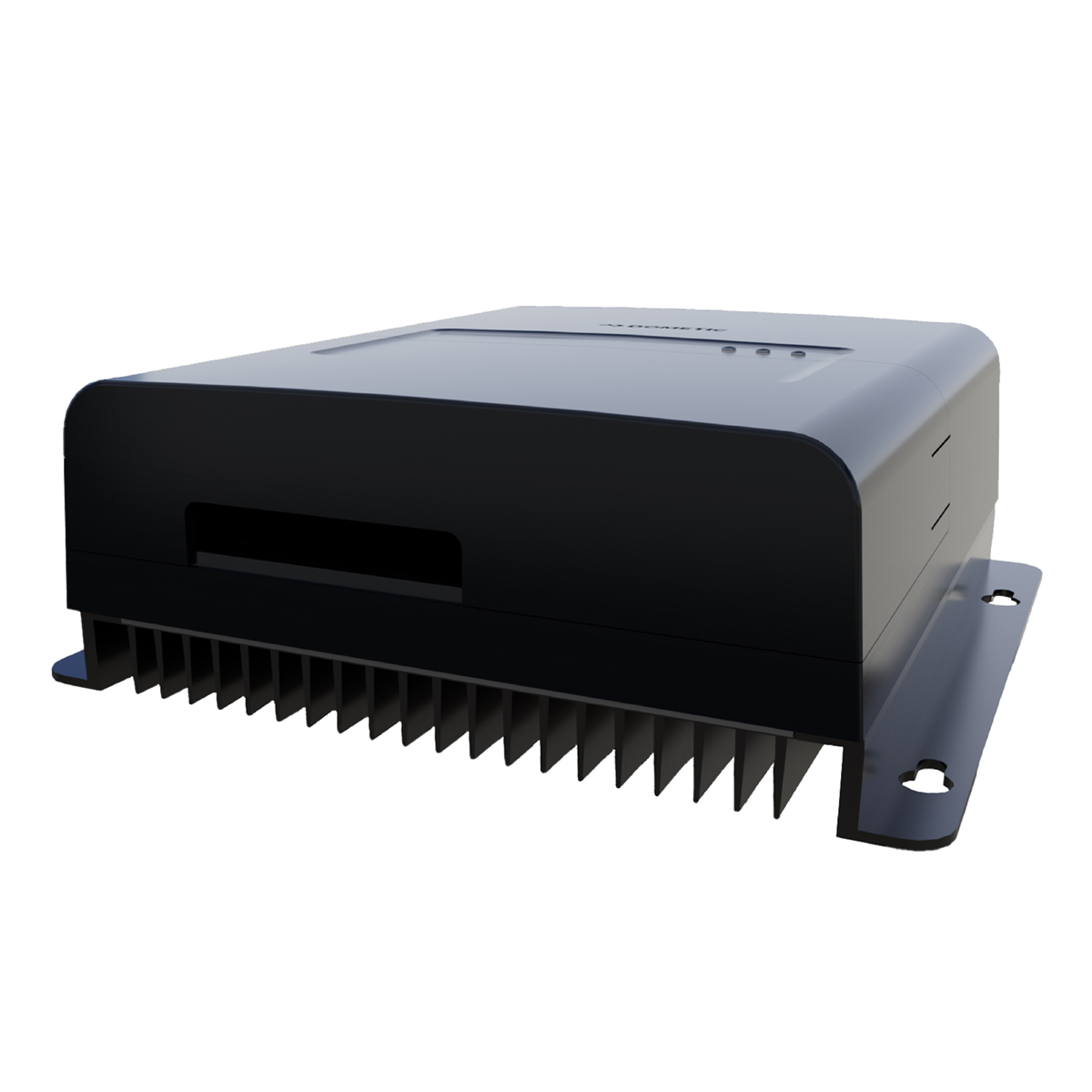

MODEL: SC-DB-MPPT-30-12
Actual product may not be exactly as shown.
Features:
-
RV-C and PowerTrak™ compatible
-
Charge two battery banks simultaneously
- Stackable—pair up to 8 on a single system
- Supports multiple battery chemistries

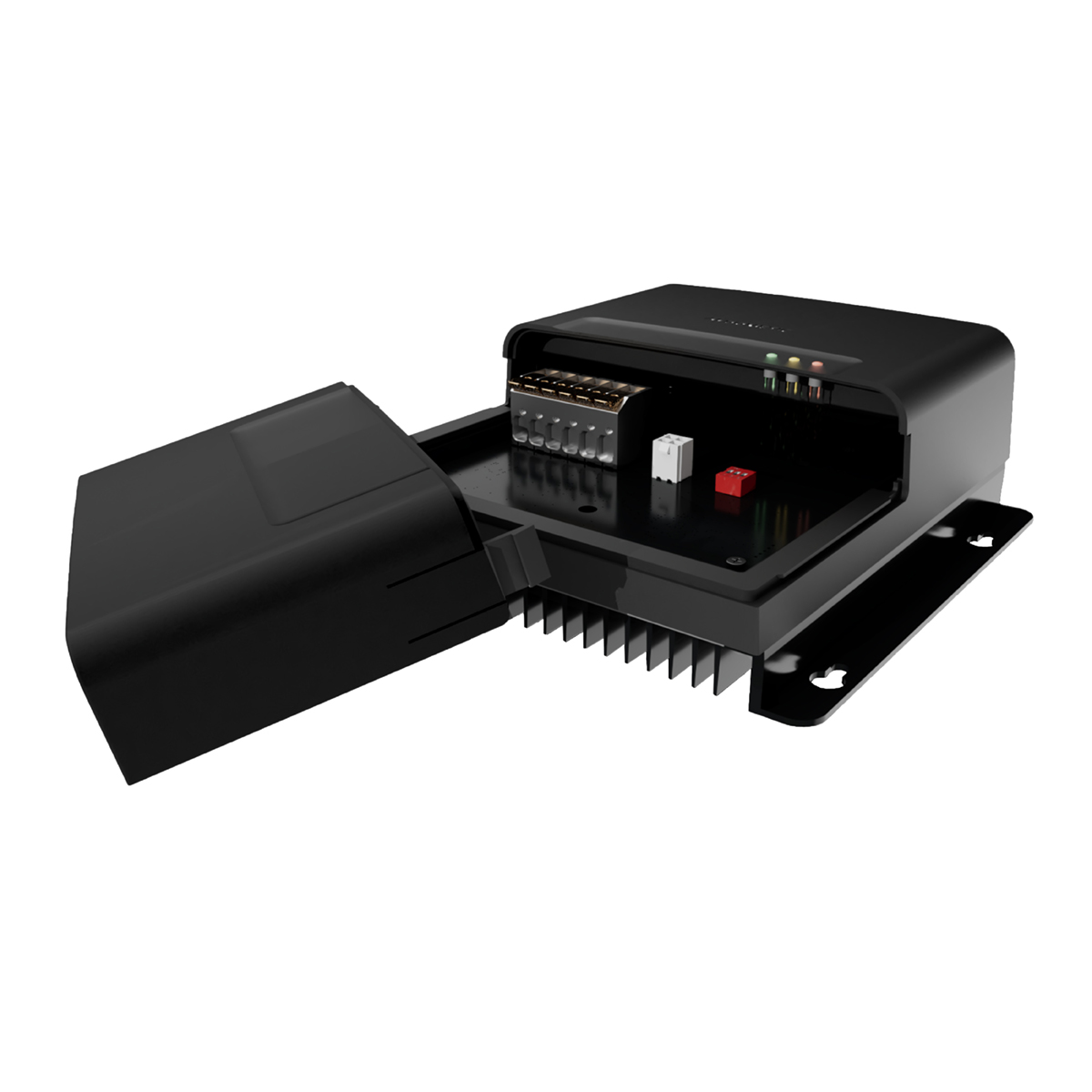

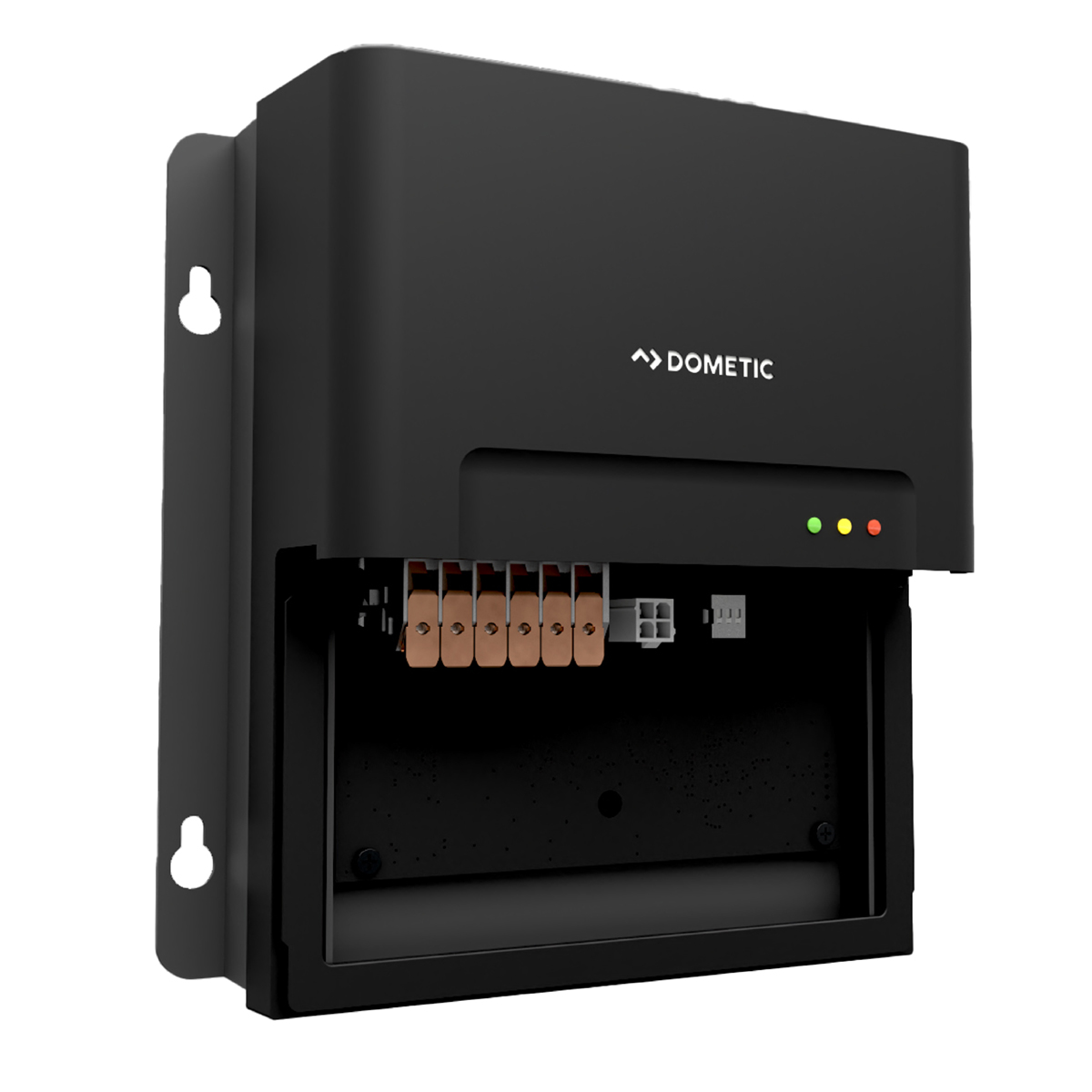

- Faster install with push-in cable clamps
- Reacts faster to solar changes and shading
- Up to 98% power conversion efficiency
- Customizable charge settings
- Automatic battery voltage recognition
- 5-year warranty
Stackable
Expand your solar system and build the ultimate solar array. These controllers can accept up to 6400 watts of solar using 8 controllers on a single system.Connected
PowerTrak™ compatible. This inverter uses built-in intelligence and RV-C communication to interact with other PowerTrak™ compatible products including:- Advanced Inverter Chargers
- Advanced Lithium Batteries
- Advanced Sine Wave Inverters with Transfer Switch
- Battery Manager Kit
- Smart Sine Wave Inverters
Supported by Mobile
Unlock the full potential of your RV’s power system with the Go Power! Connect / Dometic Power app! Get real-time insights into your solar charging stats, battery levels, and power consumption on your mobile device. Monitor performance and set inverter and charging parameters. Available on the iOS and Android app store.Specifications
Product Specifications
| SPECIFICATIONS | SC-DB-MPPT-30-12 |
|---|---|
| System Voltage | 12 |
| Temperature Compensation | -3mV/°C/2V, none for Lithium batteries |
| Battery Voltage Range | 8 V – 32 V |
| Max Total Charge Current | 30 A |
| Max Secondary Charge Current | Adjustable to a 2.5 A maximum |
| Max Panel Input Voltage | 96 Voc |
| Max PV Power Input | 600 W @12V / 1200 W @24V |
| No-Load Loss | 36.5 mA @12.5 V |
| Operating Temperature | -40 to 140°F / -40 to 60°C |
| Humidity | 95% non-condensing |
| Grounding | Common Negative |
| Number of Battery Outputs | 2 |
| Max Wire Gauge (B1 & B2) | 8 AWG |
| Standards | FCC Part 15 Class B, RoHS |
| Protection | Battery reverse polarity, Over temperature, Internal overvoltage, PV overcurrent, Reverse current (Battery to PV) |
| Stackability | Up to 8 controllers (Maximum 240A or 4800 W solar) Connected using 83542 – GP-RVC-PT-BC |
| Dimensions (L x W x H) | 7.55 in x 6.97 in x 2.6 in (192 x 177 x 68 mm) |
| Weight | 7 lbs / 3.18 kg |
| Warranty | 5 Years |
Documents
Product Documents
MODEL: SC-DB-MPPT-30-12
Actual product may not be exactly as shown.
Features:
-
RV-C and PowerTrak™ compatible
-
Charge two battery banks simultaneously
- Stackable—pair up to 8 on a single system
- Supports multiple battery chemistries
- Faster install with push-in cable clamps
- Reacts faster to solar changes and shading
- Up to 98% power conversion efficiency
- Customizable charge settings
- Automatic battery voltage recognition
- 5-year warranty
Stackable
Expand your solar system and build the ultimate solar array. These controllers can accept up to 6400 watts of solar using 8 controllers on a single system.Connected
PowerTrak™ compatible. This inverter uses built-in intelligence and RV-C communication to interact with other PowerTrak™ compatible products including:- Advanced Inverter Chargers
- Advanced Lithium Batteries
- Advanced Sine Wave Inverters with Transfer Switch
- Battery Manager Kit
- Smart Sine Wave Inverters
Supported by Mobile
Unlock the full potential of your RV’s power system with the Go Power! Connect / Dometic Power app! Get real-time insights into your solar charging stats, battery levels, and power consumption on your mobile device. Monitor performance and set inverter and charging parameters. Available on the iOS and Android app store.
Dometic 30A MPPT Solar Controller Specs (SC-DB-MPPT-30-12)
| SPECIFICATIONS | SC-DB-MPPT-30-12 |
|---|---|
| System Voltage | 12 |
| Temperature Compensation | -3mV/°C/2V, none for Lithium batteries |
| Battery Voltage Range | 8 V – 32 V |
| Max Total Charge Current | 30 A |
| Max Secondary Charge Current | Adjustable to a 2.5 A maximum |
| Max Panel Input Voltage | 96 Voc |
| Max PV Power Input | 600 W @12V / 1200 W @24V |
| No-Load Loss | 36.5 mA @12.5 V |
| Operating Temperature | -40 to 140°F / -40 to 60°C |
| Humidity | 95% non-condensing |
| Grounding | Common Negative |
| Number of Battery Outputs | 2 |
| Max Wire Gauge (B1 & B2) | 8 AWG |
| Standards | FCC Part 15 Class B, RoHS |
| Protection | Battery reverse polarity, Over temperature, Internal overvoltage, PV overcurrent, Reverse current (Battery to PV) |
| Stackability | Up to 8 controllers (Maximum 240A or 4800 W solar) Connected using 83542 – GP-RVC-PT-BC |
| Dimensions (L x W x H) | 7.55 in x 6.97 in x 2.6 in (192 x 177 x 68 mm) |
| Weight | 7 lbs / 3.18 kg |
| Warranty | 5 Years |
